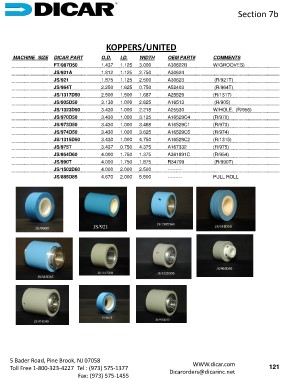

Page 115 - 2026 Dicar Product Catalog

Section 7b

KOPPERS/UNITED

MACHINE SIZE DICAR PART O.D. I.D. WIDTH OEM PART# COMMENTS
FT/987D50 1.437 1.125 3.000 A30622B W/GROOVES)
JS/921A 1.812 1.125 2.750 A30624
JS/921 1.875 1.125 2.500 A30623 (R/921T)
JS/964T 2.250 1.625 0.750 A52403 (R/964T)
JS/1317D50 2.500 1.500 1.687 A25529 (R/1317)
JS/905D50 3.130 1.000 2.625 A16513 (R/905)
JS/1323D50 3.430 1.000 2.218 A25530 W/HOLE. (R/956)
JS/970D50 3.430 1.000 3.125 A16529C4 (R/970)
JS/973D50 3.430 1.000 3.468 A16529C1 (R/973)
JS/974D50 3.430 1.000 3.625 A16529C5 (R/974)
JS/1315D50 3.430 1.000 4.750 A16529C2 (R/1315)
JS/975T 3.437 0.750 4.375 A167332 (R/975)
JS/954D60 4.000 1.750 1.375 A361891C (R/954)
JS/990T 4.000 1.750 1.875 R34799 (R/990T)
JS/1502D60 4.000 2.000 2.500 ---------
JS/885D85 4.670 2.000 5.500 --------- PULL ROLL
